Architects Hub

Everything you need to specify it.

Ask once and it comes to your studio or the site.

  1. What sizes?

    Each surface has its own panel sizes, up to 3150 mm long and 1200 mm wide. Other formats are made to order.

  2. How is it fixed?

    With CrestStone adhesive, on a dry, dust-free substrate, and grouted. Five steps to a finished wall.

    1. 01Surface preparationThe substrate must be dust free and completely dry before setting out. Do not wet it at any stage. Remove debris and any raised or uneven areas first.
    2. 02AdhesiveUse the CrestStone adhesive suited to the substrate. The adhesive chart says which, or ask us.
    3. 03Cutting and installationMark with a lead pencil and cut to the line. Install vertically or horizontally, as the design asks.
    4. 04GroutingFill the joints and finish the grout line as specified.
    5. 05CleaningWipe off excess grout with a damp sponge while the grout is still half set.
  3. Is it fire resistant?

    Yes. Every panel is laboratory tested for fire resistance, water absorption and impact stability.

  4. How do I get a sample?

    Any colourway, cut to hand size, sent to your studio or the site.

Downloads

Textures at full size for your renders.

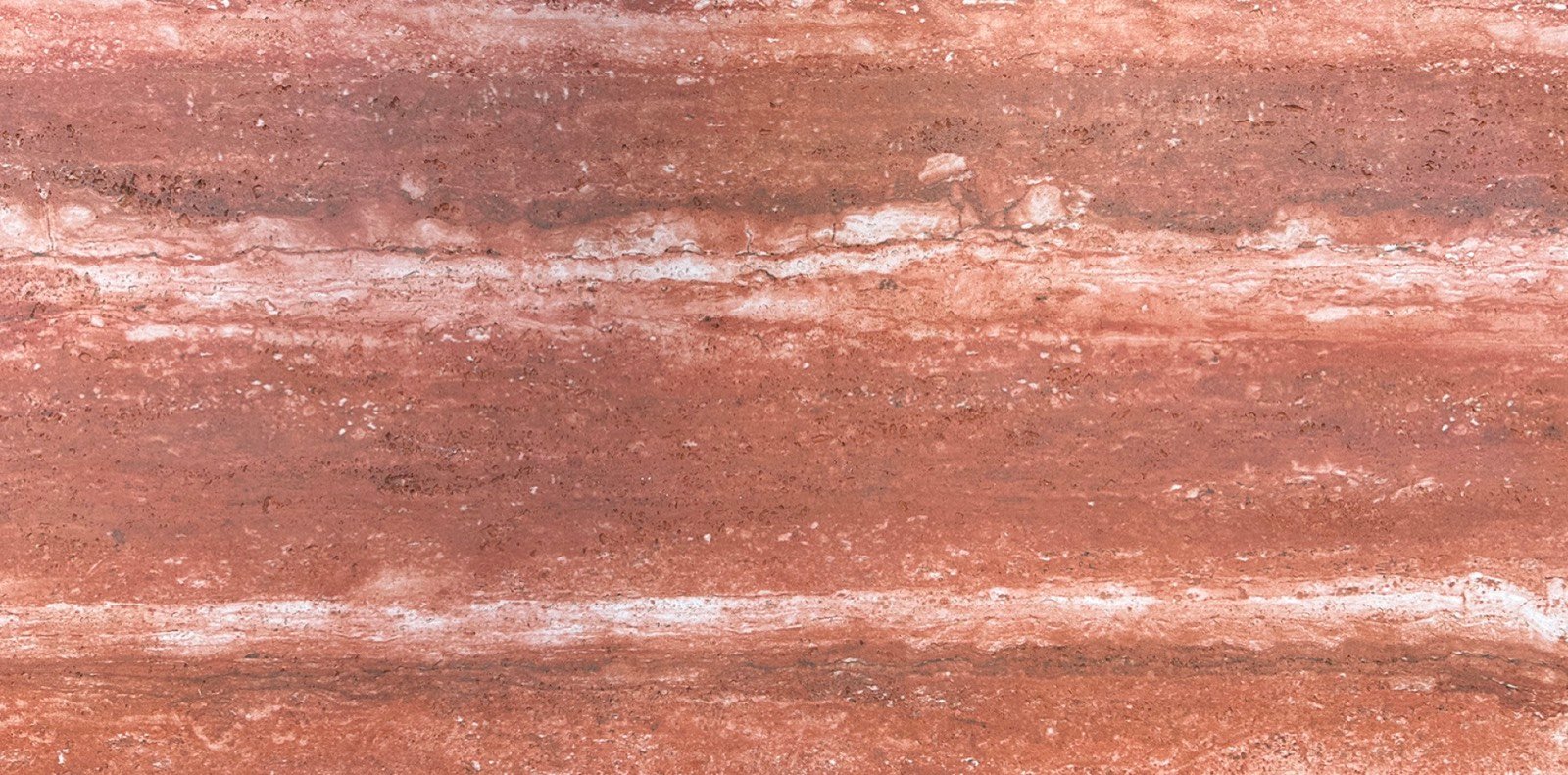

  • Texture, Linear Travertine, RedJPG · 374 KBDownload
  • Fire test reportBy email, on requestAsk
  • Adhesive chartBy email, on requestAsk
  • Spec sheet and CADBy email, on requestAsk
